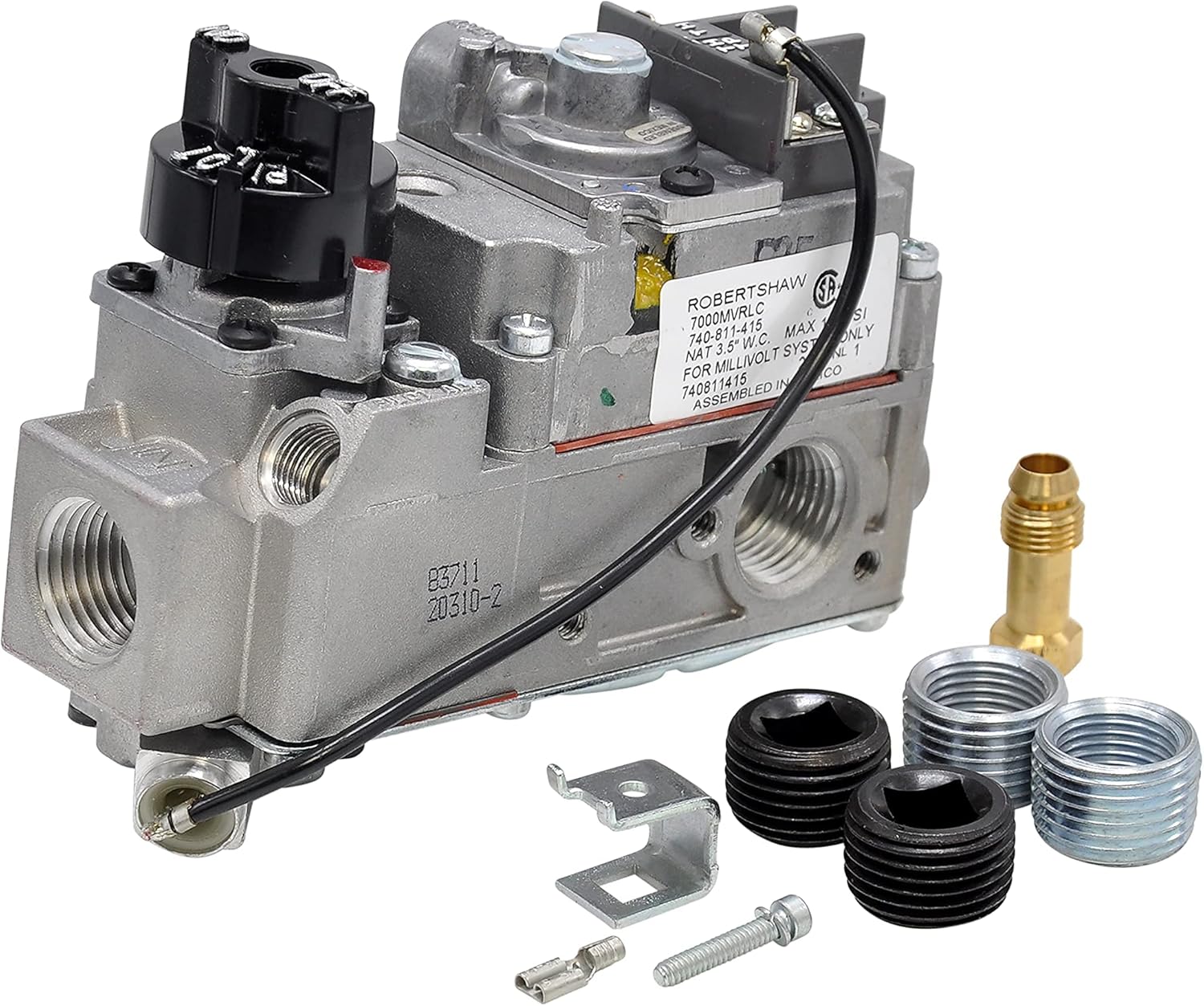

Robertshaw 710-502 Millivolt 70,000 BTU Capacity Gas Valve
Product details
| Management number | 214922226 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 214922226 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The 710 low capacity gas heating valves are designed for recreational vehicles and other applications with limited space. All models include a manual valve (gas cock), automatic pilot safety valve, pilot outlet, pilot gas filter and pilot adjusting key. THE CONTROL CAN BE MOUNTED IN ANY POSITION EXCEPT UPSIDE DOWN AND ALL MODELS HAVE 3-POSITION OUTLETS. Consult ordering chart for individual control specifications. NOTE: Regulated 710 series gas valves can be converted from natural to L.P. gas by using the replacement pressure regulators.
- Gas Valve Replacement: When you need to replace your B-67 gas valve, this compact, low-profile control designed for low capacity space heater applications fills the void where room is limited
- Versatility: With an electrical rating range from 250 mV to 750 mV, this gas valve suits various gas types, including natural, manufactured, mixed, liquefied petroleum and LP gas/air mixtures
- Features: RoHS-compliant 710-502 unit is equipped with three-position 1/2-inch outlets, 1/4-inch pilot outlet tubing, standard NEMA terminals, gas cock dial with off-pilot-on markings and an inlet filtered screen
- Quality Warmth: Robertshaw makes reliable controls and replacement parts for furnaces, water heaters, burners and boilers, including thermostats, switches, ignitor and heat pump controls, gas valves, and more
- Capability Sets Us Apart: Robertshaw is a global design, engineering and manufacturing company that sells product solutions and makes more than 10,000 sophisticated controls for commercial and home appliances
| UPC | 662013634278 796299765286 |
|---|---|
| Size | 3 inches (W) x 3 inches (L) x 4.125 inches (H) |
| Brand Name | Robertshaw |
| Unit Count | 1.0 Count |
| Valve Type | Gas Valve |
| Item Weight | 1.7 Pounds |
| Thread Size | 1/4 inch |
| Thread Type | FNPT |
| Manufacturer | Standard Plumbing Supply |
| Model Number | 710-502 |
| Material Type | solid |
| Connector Type | connector_type |
| Item Type Name | gas valve |
| Exterior Finish | Chrome |
| Item Dimensions | 3 x 3 x 4.13 inches |
| Number of Ports | 3 |
| Included Components | 1 |
| Inlet Connection Size | 0.5 Inches |
| Inlet Connection Type | Flare or Compression |
| Outlet Connection Size | 0.5 Inches |
| Outlet Connection Type | FNPT |
| Global Trade Identification Number | 00662013634278 |
